Hybrid Light Source and Multifunctional Handheld 3D Scanner

FreeScan Combo

Hybrid Light Source and Multifunctional Handheld 3D Scanner

FreeScan Combo

FREESCAN COMBO
FREESCAN COMBO
Light Source Blue Laser + Infrared VCSEL
Accuracy Up to 0.02 mm
Weight     620g
Compact Size 193mm x 63mm x 53mm

Design

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL.

Shining 3D Freescan Combo 3 boyutlu tarayıcı

4 scanning modes,multiple scan choices

· 13 cross blue laser lines for global smooth scanning;
· 7 parallel blue laser lines for fine scanning details;
· 1 single blue laser lines to obtain deep hole data;
· Infrared light source and large FOV for more applications.

Accuracy

Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm.

*According to VDI-VDE 2634-3

Shining 3D Freescan Combo 3 boyutlu tarama hizmeti

Applications

FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

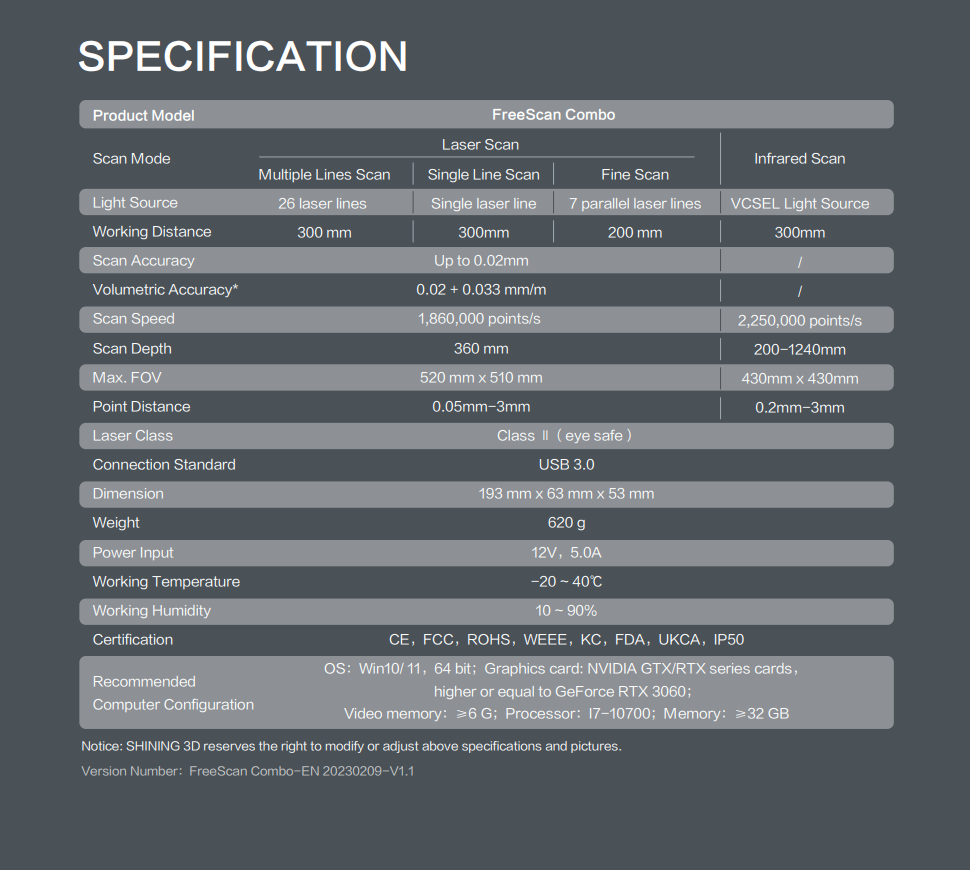

FreeScan Combo Specification

Freescan Combo Specification

FreeScan Combo Related Videos

You can contact us for price offer and demo requests.
